Dimensions & Weight
| Overall (LxWxH) mm | 5,320 x 1,920 x 1,815 |
|---|---|
| Wheelbase (mm) | 3,085 |
| Tread Front/Rear (mm) | 1,535 / 1,550 |
| Ground Clearance (mm) | 310 |
| Turning Radius (m) | 6.4 |
| Gross Vehicle Weight (kg) | 2,870 |
| Curb Weight Min (kg) | 2,075 |
| Curb Weight Max (kg) | 2,110 |
| Seating Capacity | 5 |
| Deck Size (mm) | 1,555 x 1,540 x 480 |
Engine
| Engine Model | 1GD-FTV 2.8L Turbo Diesel |
|---|---|
| Type | 4-Cylinder In-Line 16-Valve DOHC |
| Displacement (cc) | 2,755 |
| Bore x Stroke | 92.0 x 103.6 |
| Compression | 15.6 |
| Max Output | 150 kW / 3,000-3,400 rpm |
| Max Torque | 500 Nm / 1,600-2,800 rpm |
| Fuel System | Fuel Injection |
| Fuel Type | Diesel |
| Fuel Tank (L) | 80 |
Chassis
| Transmission | 6-Speed Automatic |
|---|---|
| Suspension | Double Wishbone / Leaf Spring Rigid Axle |
| Brakes | Ventilated Disc (Front) / Drum (Rear) |
| Tires | 265 / 60R18 |
| Wheels | 18-inch Aluminum |
| Steering | Electric Power Steering (EPS) |
Standard Equipment (Exterior)
| Headlamps | LED Type |
|---|---|
| Fog Lamps | With (LED) |
| Daytime Running Lights | With (LED) |
| Rear Lamps | LED Light Guide |
| Mirror | Electric Remote + Retractable + Welcome Light |
| Mudguard | With (Front & Rear) |
| Deck Bar | With |
| Bed Liner | With |
Standard Equipment (Interior)
| Steering Controls | Audio + Tel + Voice + DRCC + LTA |
|---|---|
| Steering Adjust | Tilt & Telescopic Electric Lock |
| Drive Mode | Eco + Power + Multi-Terrain Select (MTS) |
| Seats | Ergonomic Softex Leather |
| Display | 12.3-inch Display Audio (Wireless Apple CarPlay & Android Auto) |
| Speakers | 6 Speakers |
| AC | Dual Automatic Air Conditioner |
| Push Start | Push Start Switch + Smart Entry |
Safety System
| PCS | With (Pre-Collision System) |
|---|---|
| DRCC | With (Dynamic Radar Cruise Control) |
| LDA / LTA | With (Lane Tracing Assist) |

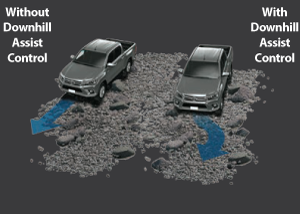

| DAC | With (Downhill Assist Control) |
| LSD | With |
| Airbags | Driver + Passenger + Driver Knee + Side + Curtain Shield |
| ABS | With |
| VSC | With |
| HAC | With |
| TSC | With |

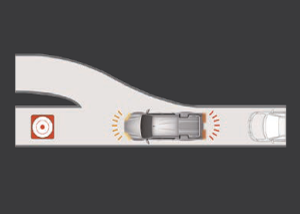

| Reverse Camera | With (Back Monitor & Sonar) |
Greater Together

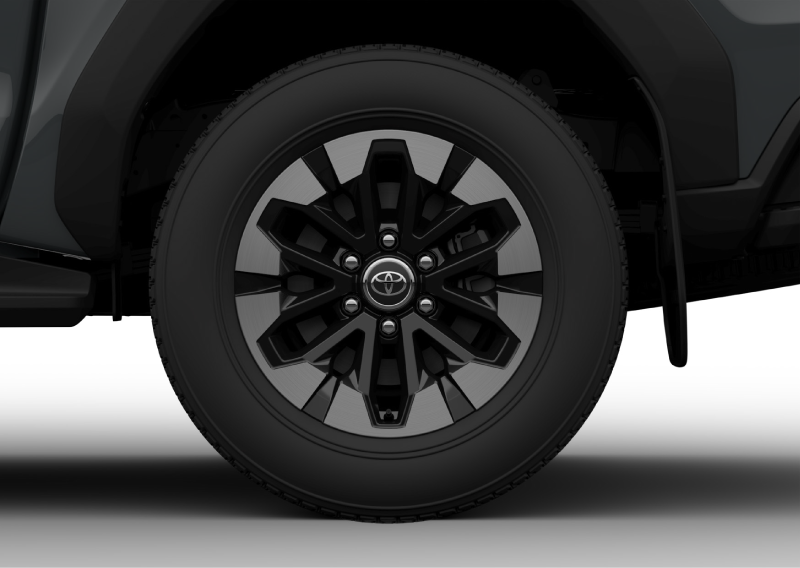

18-Inch Aluminum Wheels
With a completely new design with a youthful and powerful look.

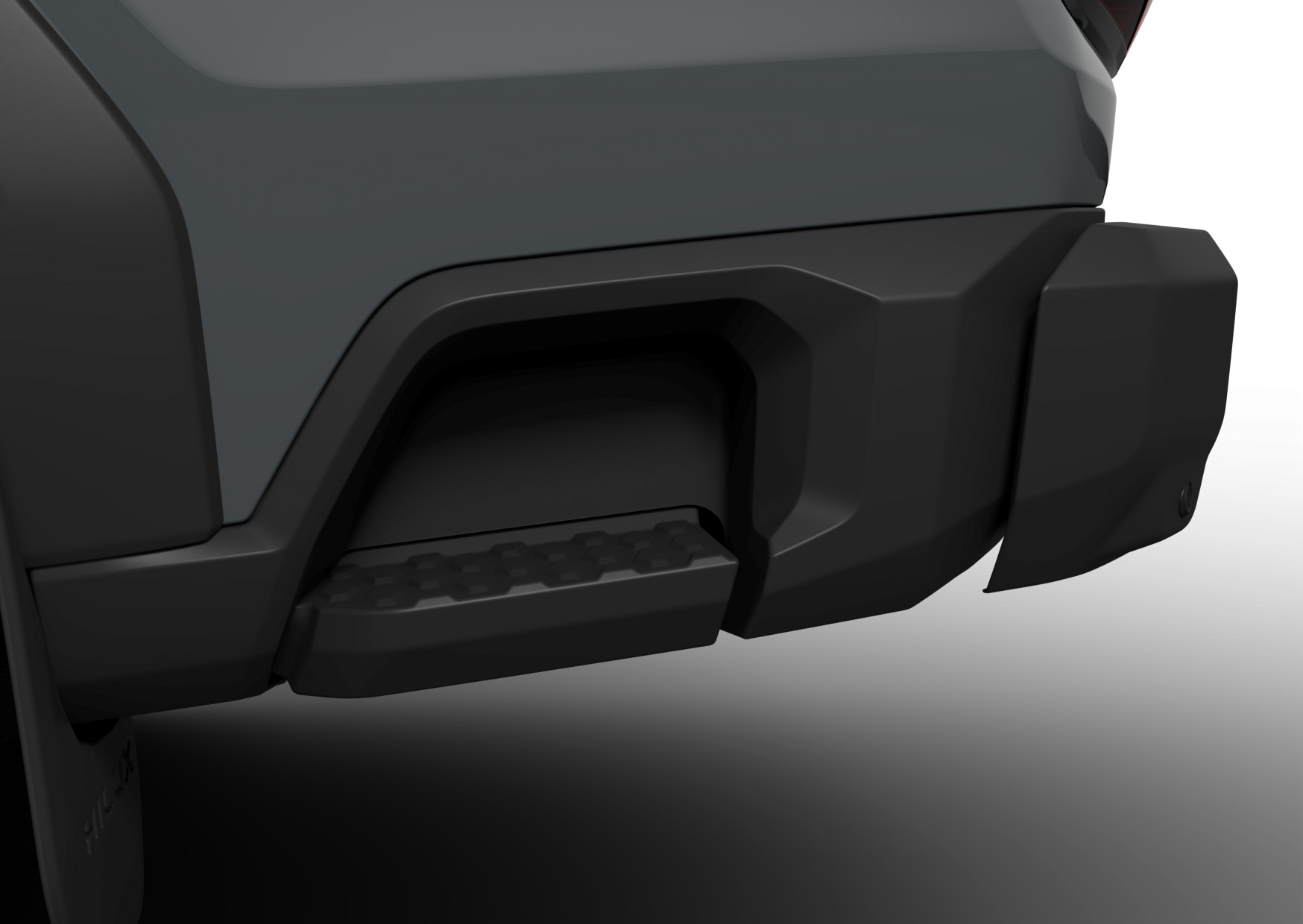

Rear Step
Provides easy and safe access to and from the truck bed.

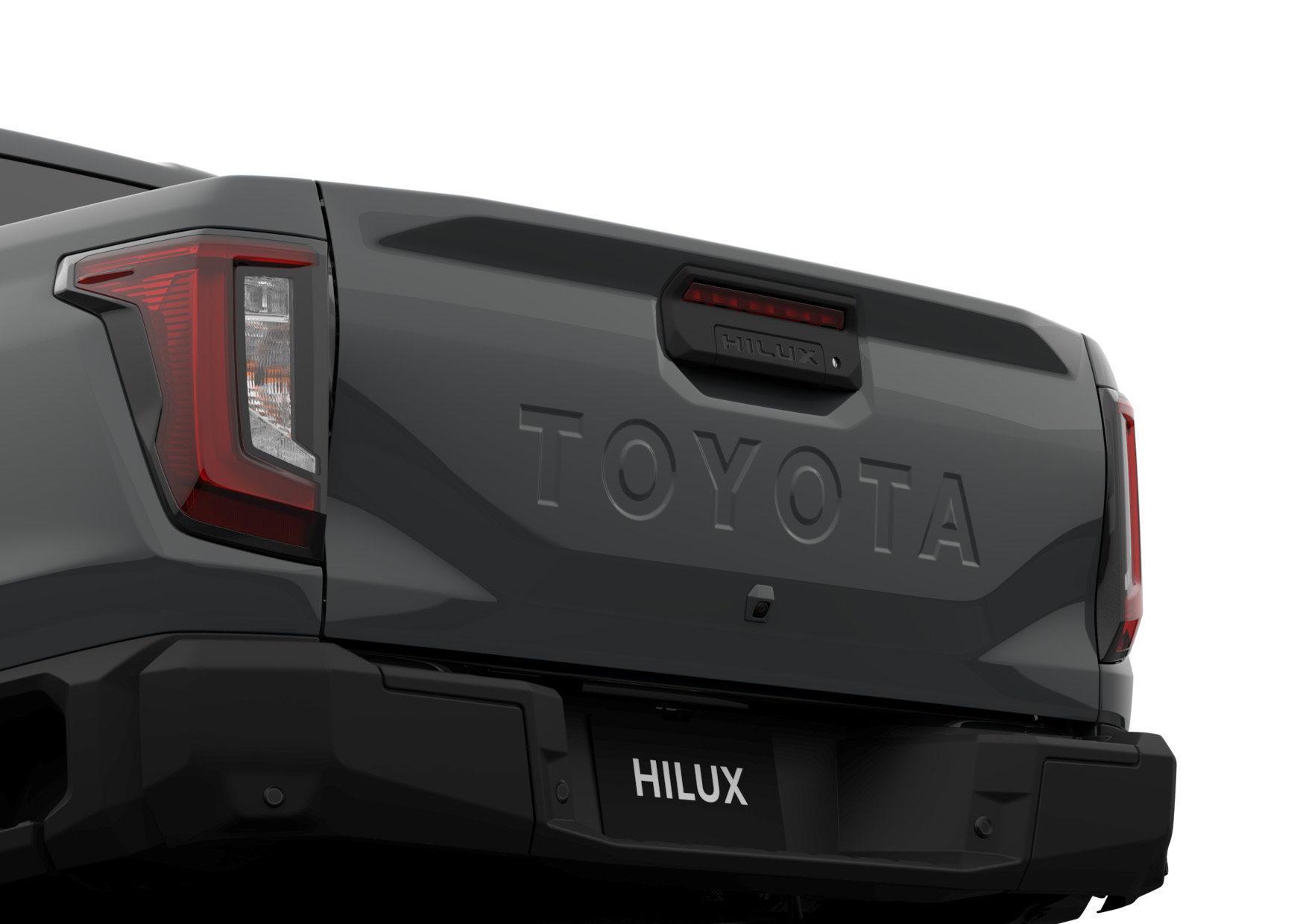

Rear Light Assembly
The LED taillights, combined with the newly redesigned rear bumper, enhances the vehicle’s dynamic appearance while delivering a modern and sophisticated look.

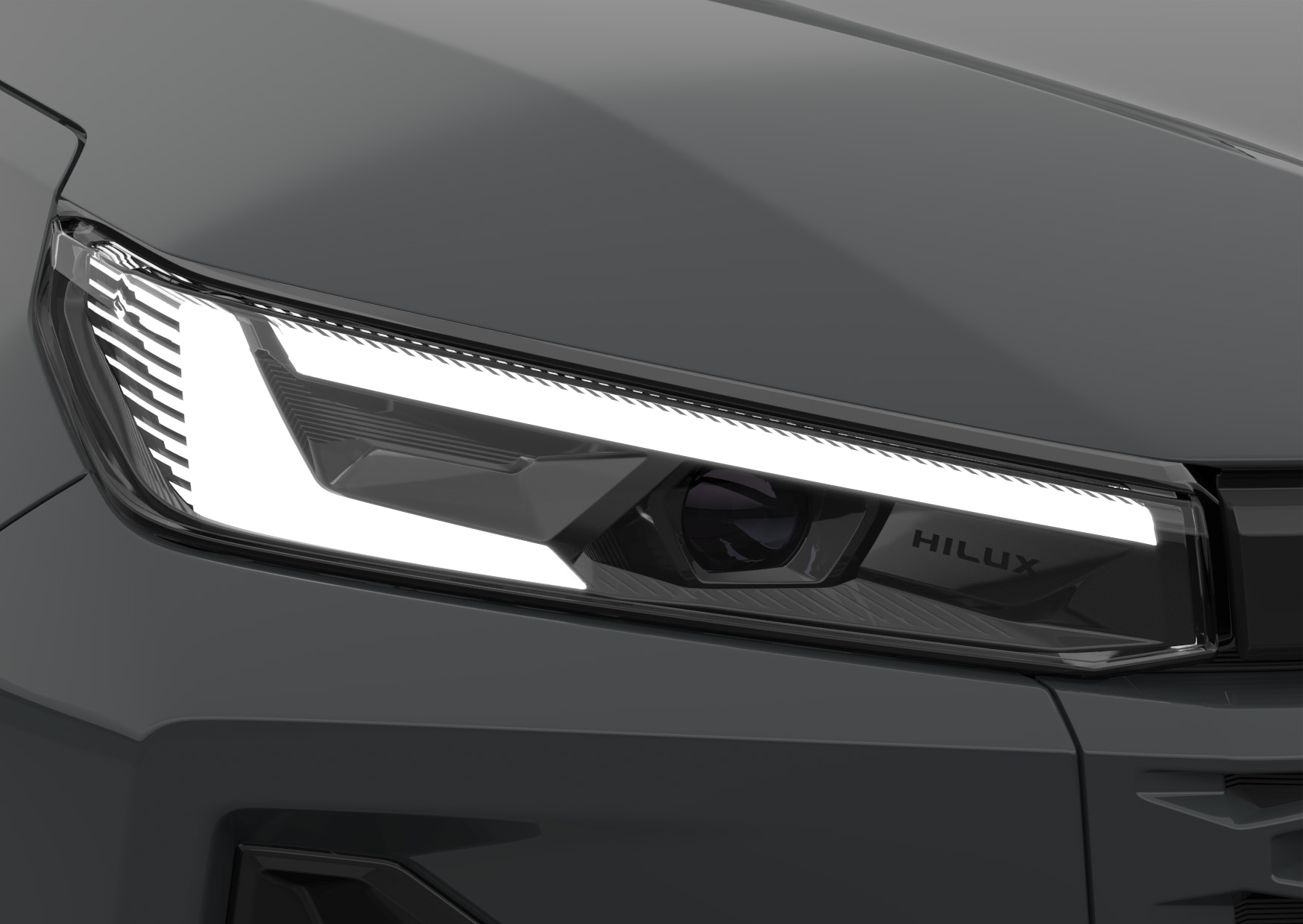

Front Headlight
Completely redesigned with a sleek, integrated LED light strip for a modern and refined appearance.
ROBUST SIMPLICITY

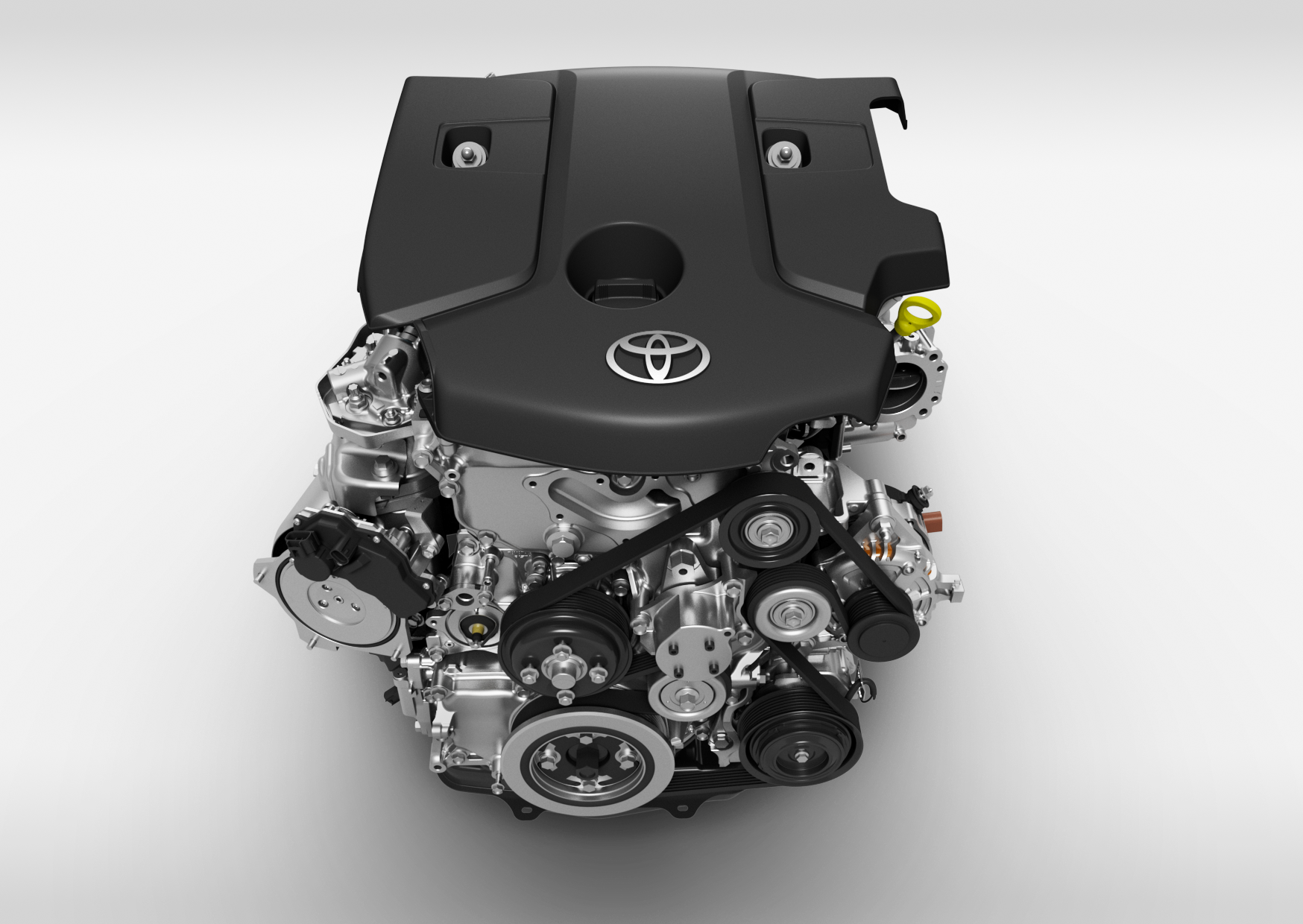

1GD-FTV
Turbo diesel engines feature direct fuel injection by common rail into the cylinders. The precisely controls the air-fuel ratio, contributing to the excellent response and fuel efficiency.

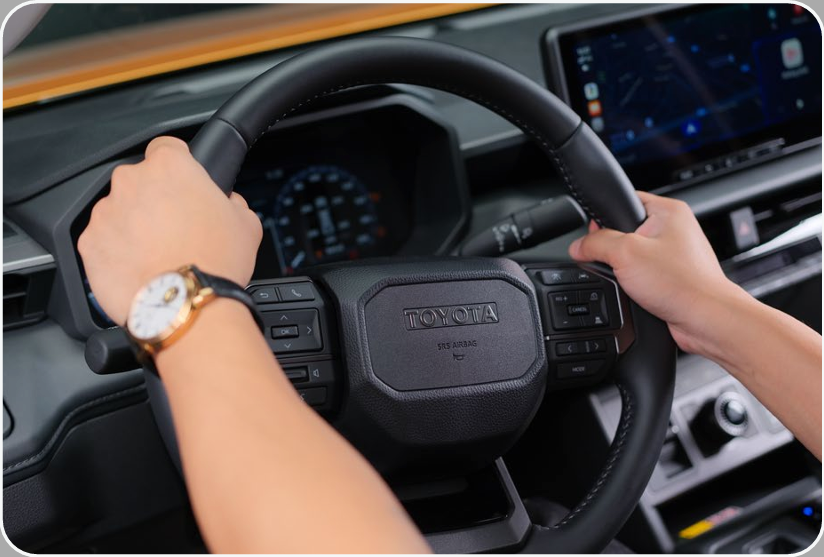

The all-new electric power steering system
Combined with integrated buttons, makes it easier for customers to operate and drive more conveniently.

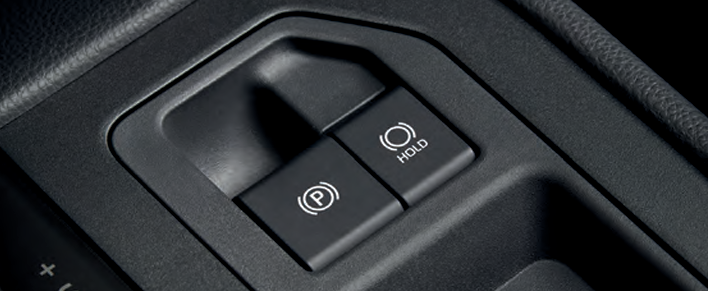

Electronic Parking Brake (EPB)
Electronic parking brake with automatic brake hold (Auto Brake Hold).

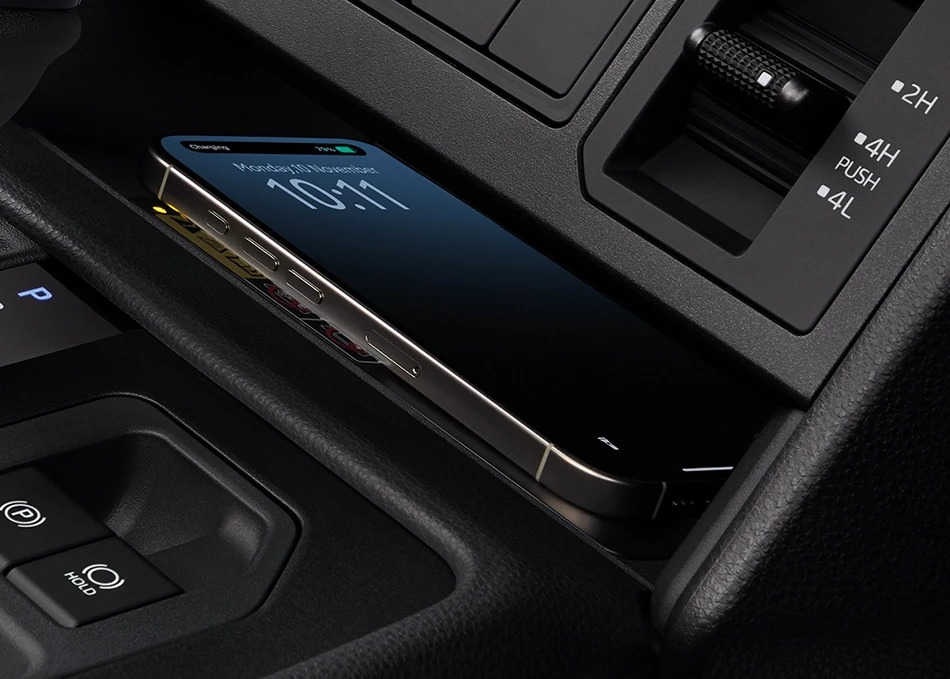

Wireless Charger
Wireless charging device.
COMFORT & UTILITIES FUNCTION

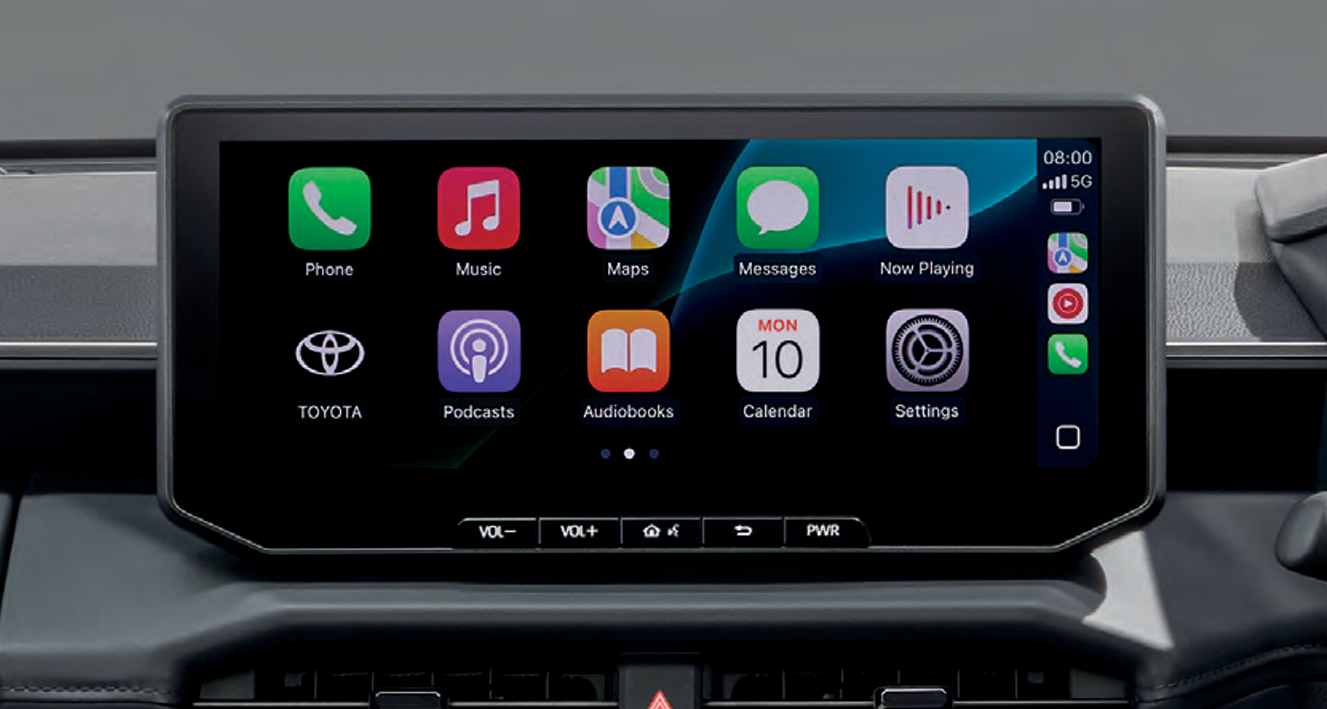

Display Audio
Large 12.3-inch screen supports wireless Apple CarPlay & Android Auto.

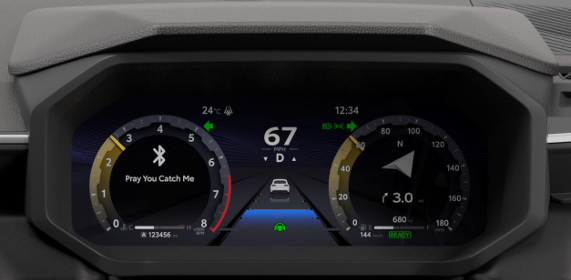

Combination Meter
Digital display, Modern & Sharp.

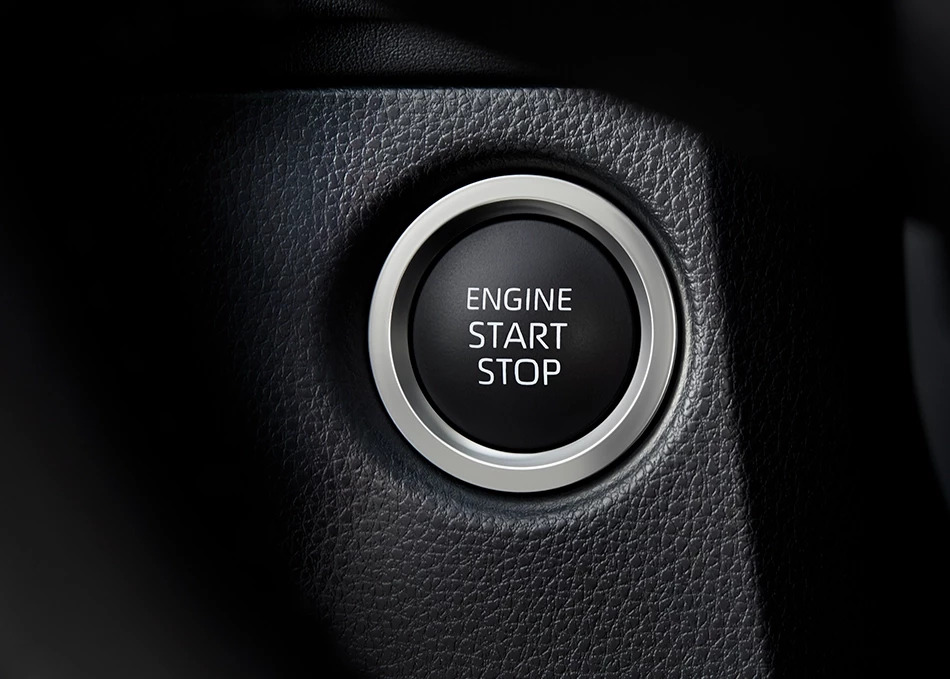

Push Start
Let you start the engine simply by pushing a button.

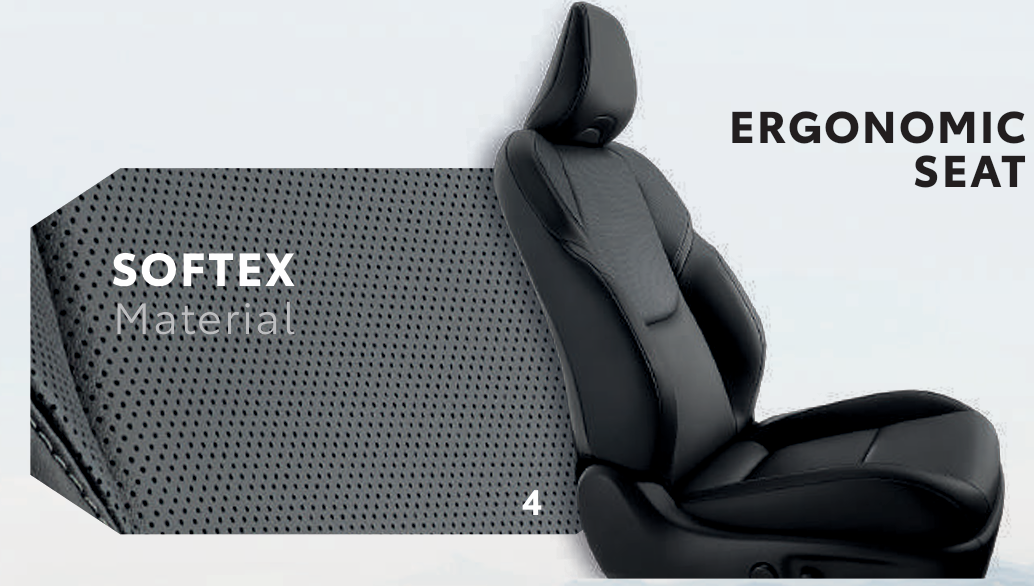

Ergonomic Seat
Ergonomically designed seats with soft and comfortable Softex leather.

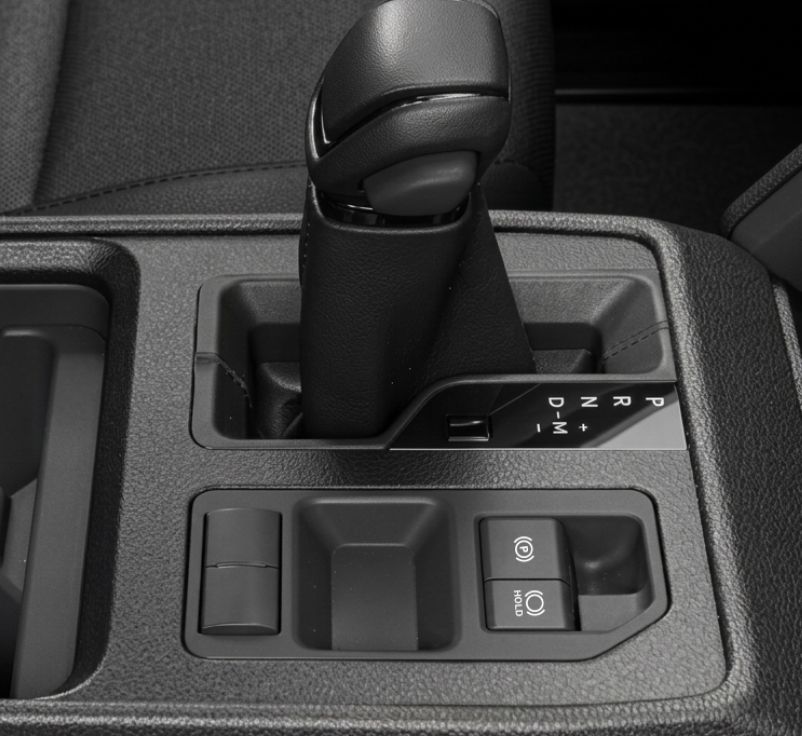

6-Speed Automatic Transmission
The newly designed, inline gear shift cluster makes operation simpler for the driver.

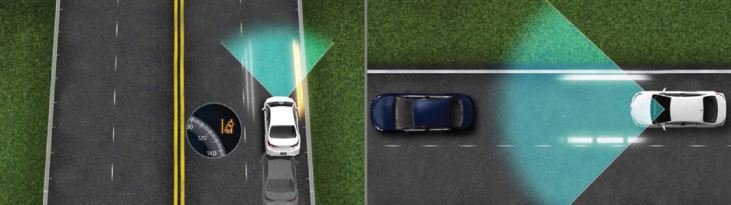

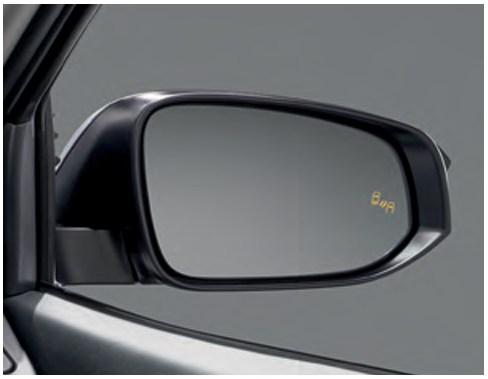

Blind Spot Monitor
Blind spot warning system reduces accidents caused by lane changes.
POWERTRAIN & OFF-ROAD ABILITY

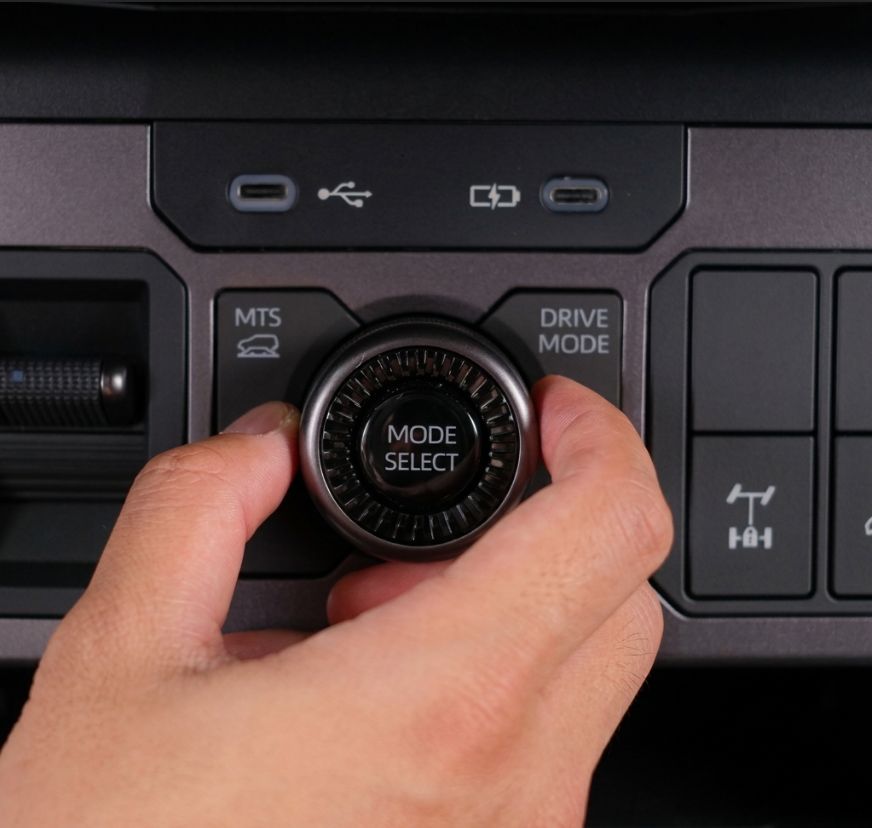

MTS (Multi-terrain Selection System)
Helps the driver select the appropriate operating mode for various types of surfaces, providing optimal off-road performance.

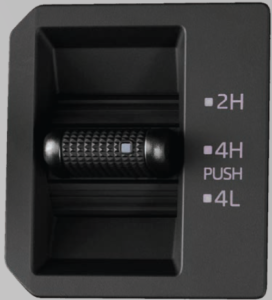

Part-Time Transfer Switch
Highlighting driver-friendly operation, you can switch between 2WD and 4WD by simply turning the dial switch, even while moving.
ACTIVE SAFETY SYSTEM (TOYOTA SAFETY SENSE)
The All-New Hilux is equipped with the latest features of the Toyota Safety Sense system, providing an absolute safety experience on every road.

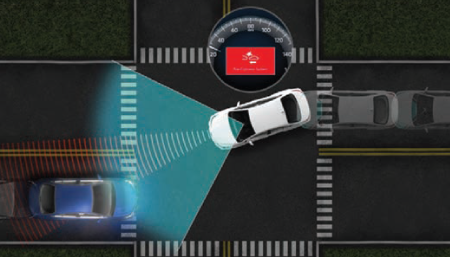

Pre–Collision System (PCS)
Designed to help drivers mitigate or avoid frontal collisions by detecting the objects and providing an audio and/or visual forward collision warning and brake assist under certain circumstances.

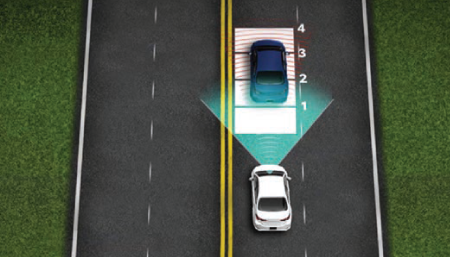

Dynamic Radar Cruise Control (DRCC)
DRCC is an adaptive cruise control system that uses vehicle-to-vehicle distance control to help maintain a preset distance from the vehicle ahead at cruising speeds set above 20 miles per hour.
Lane Tracing Assist (LTA)
Lane Tracing Assist is designed to help the driver keep the vehicle centered in its lane. LTA functions when DRCC is activated, and detects lane markings, as well as the path of the vehicle ahead, and is designed to actively provide steering inputs that help keep the vehicle centered in its lane.

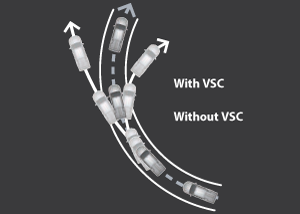

Vehicle Stability Control (VSC)

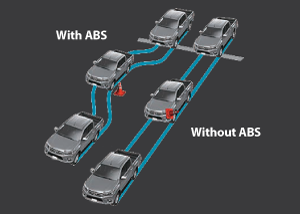

Anti-Lock Braking System (ABS)

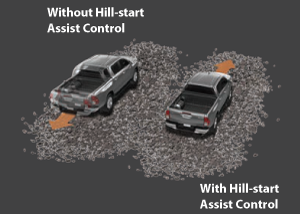

Hill-Start Assist Control (HAC)
Emergency Brake Signal
